3Genesis A - Top Load Push Lock with Guide Grooves M6x12
3Genesis A - Top Load Push Lock with Guide Grooves M6x12
Product number:
3GEN-AGTLM6X12-G1.75-M10
Quick Links
Product information
This Top Load lock is built with (4) M6x12 socket head cap screw in place of the regular screws. The patented guide grooves provide simple pin engagement. It has a multi-contoured surface that accommodates multiple liners.

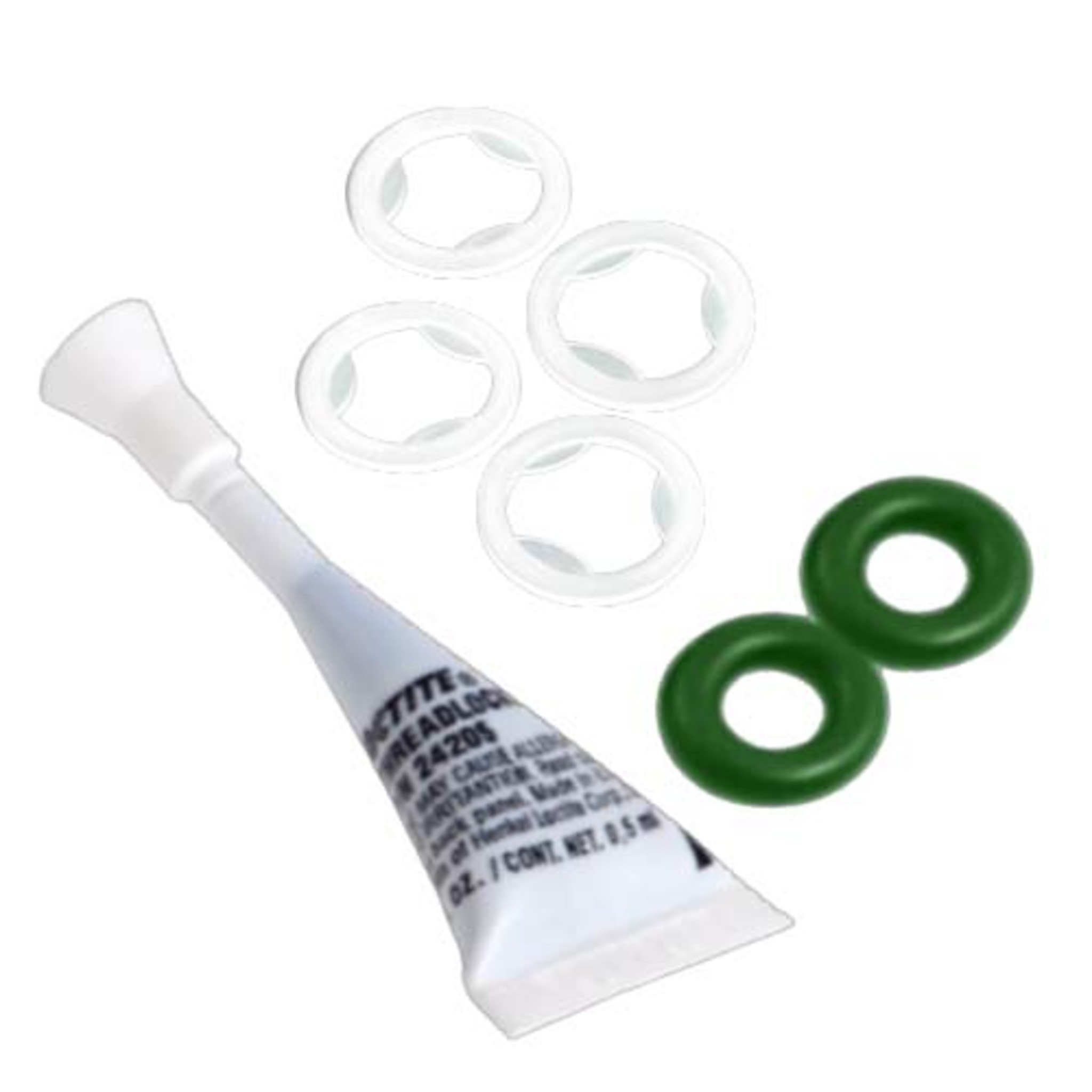

- Plunger pins of choice, with o-rings
- (2) 0.5 mm pin adjustment washers
- (2) 1.0 mm pin adjustment washers
- (4) M6x20 socket head cap screws
- (1) 0.017 fl oz. tube of Loctite®
Specifications
- Lock Type: Shuttle
- Fabrication Technique: Lamination, Thermoforming
- Housing Material: N/A
- Amputation Level: Transtibial, Transfemoral
- Activity Level: N/A
- Weight Limit: 350lbs (159kg)
- Product Weight (g): 77
- Build Height (mm): 25
- Distal Attachment: 4-Hole
- Warranty: 12 months from purchase date
| User: | Adult |
|---|---|
| Amputation Level: | Transfemoral (TF/AK), Transtibial (TT/BK) |
| Suspension Type: | Locks |
| Fabrication Technique: | Lamination, Thermoplastic |
| Key Features: | High Weight Limit |
| Weight Limit: | 100 kg (220 lbs), 125 kg (275 lbs), 136 kg (300 lbs), 150 kg (330 lbs), 159 kg (350 lbs) |
| Material: | Stainless Steel |
