Alpha Hybrid® Liners
Quick Links
| Part # | Description |
|---|
Product Information

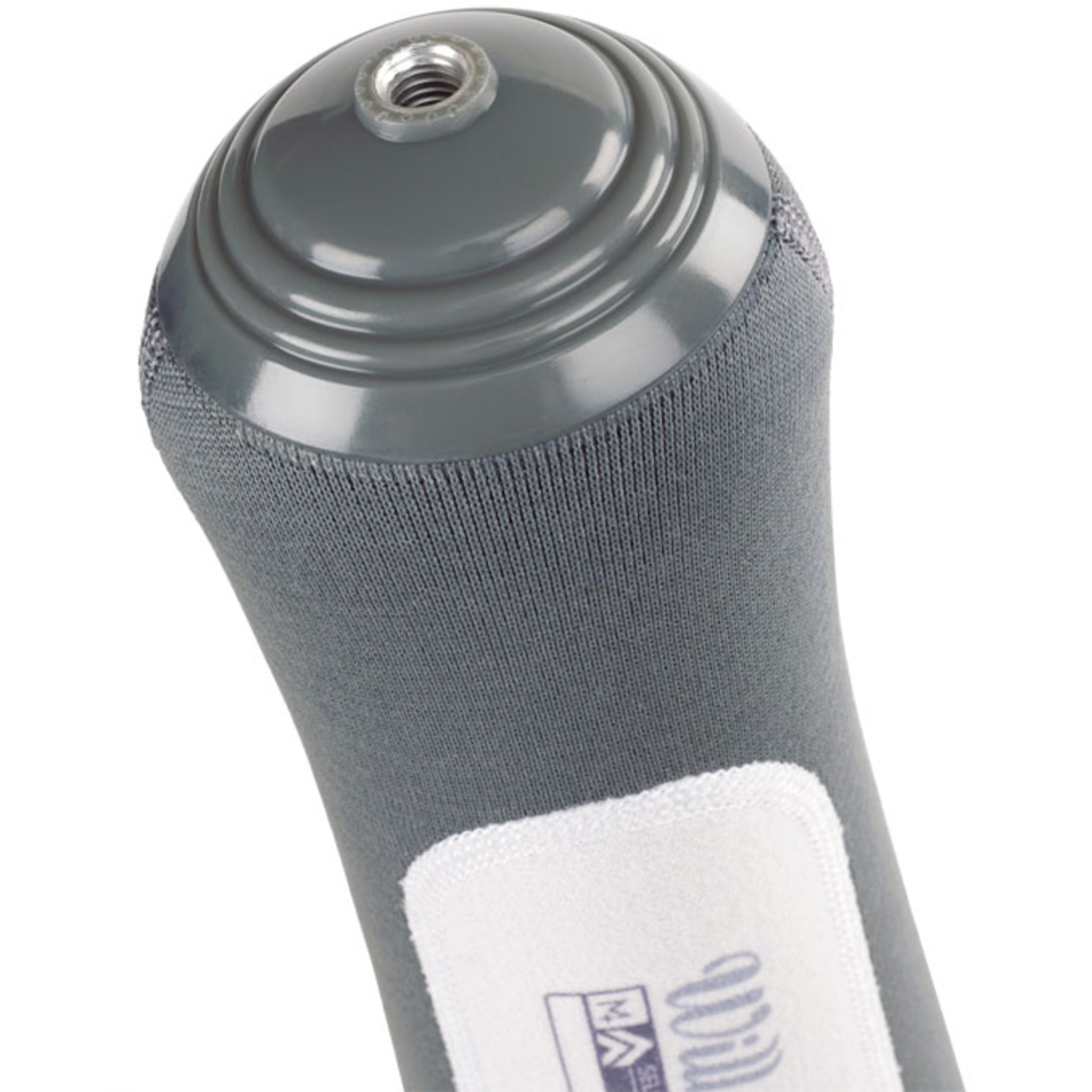

The Alpha Hybrid® Liner allows for easy bending and flexing of the knee and donning and doffing. A flexible panel incorporates an abrasion-resistant fabric allowing the limb to easily flex without pulling and tightening at the knee. Alpha Hybrid® locking liners feature an accordion umbrella that blends with patient anatomy. The cushion liner is ideal for use with elevated vacuum suspension.
- Hybrid Gel is skin-friendly and durable
- Fabric Cover: Select fabric
Specifications
- Amputation Level: Transtibial
- Activity Level: K1, K2, K3, K4
- Type: Cushion, Locking
- Material: Thermoplastic Elastomer
- Cover: Fabric Cover
- Profile: Uniform, Tapered
- Style: Standard
- Color: Gray, Light Gray

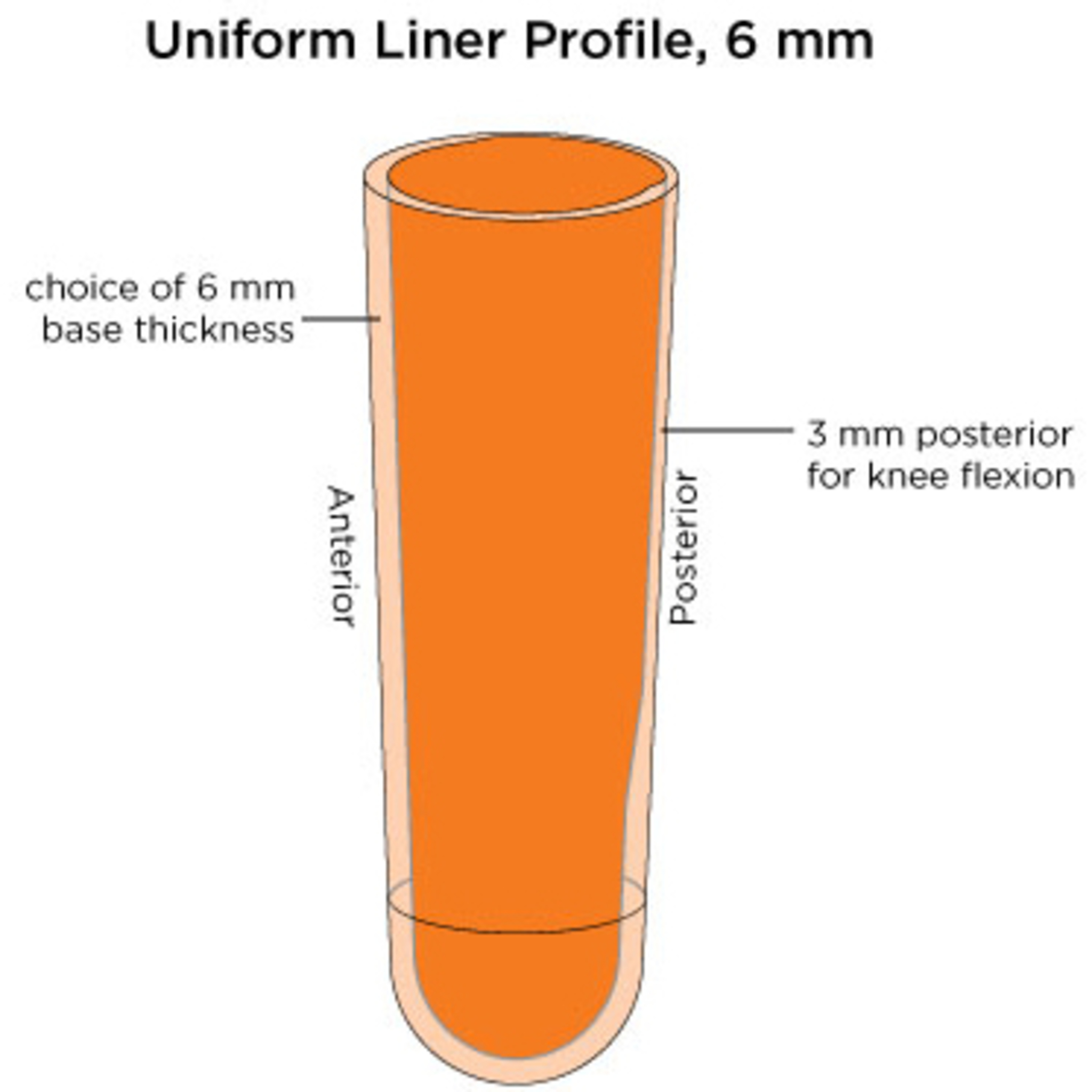

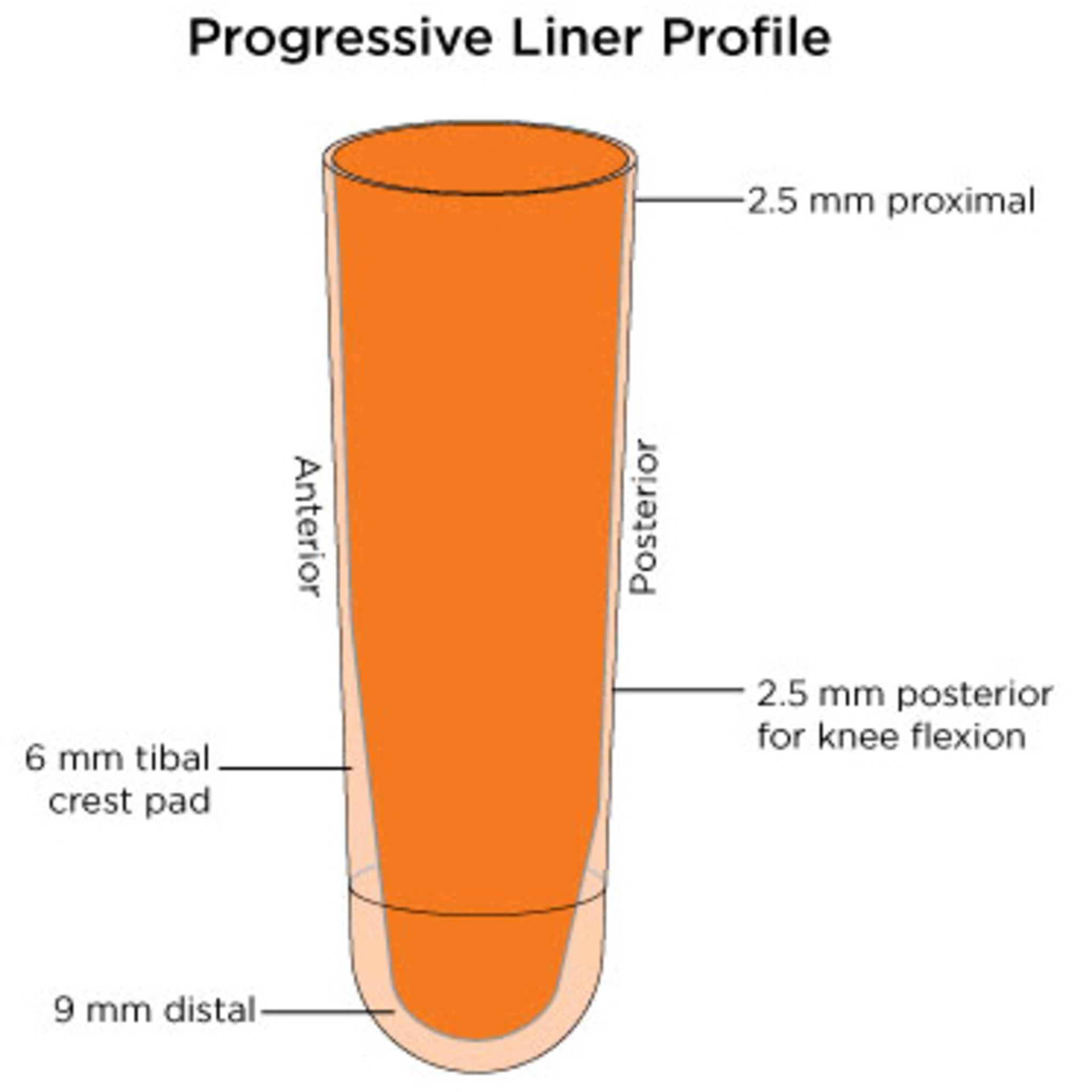

- Thickness (mm): 9:2.5 (Tapered), 6 (Uniform)
- Sizes (cm): SM-XL
- Trial Period: 30 days from fit date
- Warranty: 12 months from fit date
To determine proper sizing, please see the transtibial sizing and liner thickness charts
