Formula™ Ultra Pylon
Formula™ Ultra Pylon
Product number:
178-110-A
Optional Accessories
Select Foot Plate
Quick Links
Product information
The Formula™ Ultra posterior mount (PM) foot provides flexibility and power, creating a dynamic foot that fits a wide breadth of patients.
- Pylon only
- Long carbon composite pylon
- Maximum multiaxial function
- Rocker toe supports easy and smooth roll-over
- Fully customizable

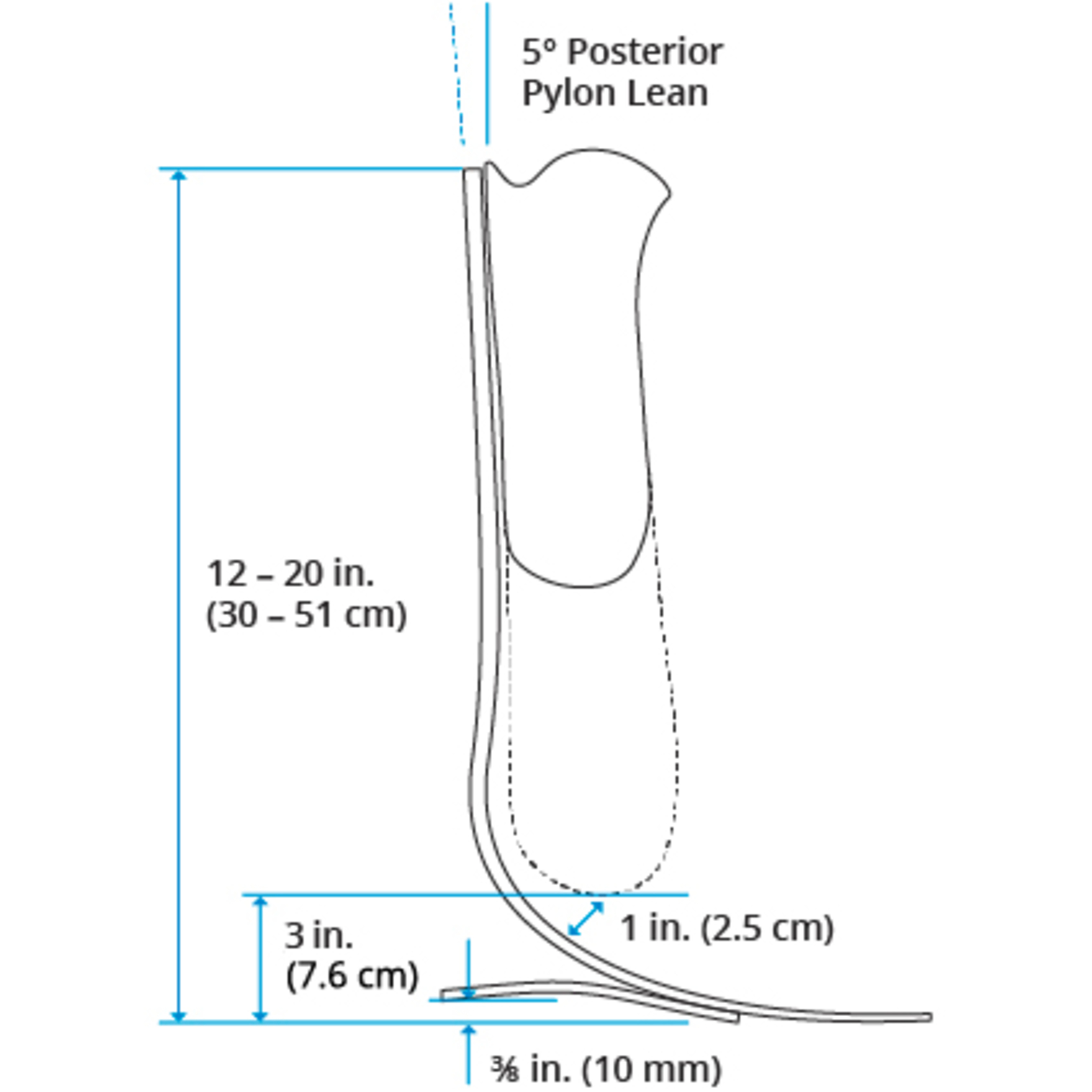

Specifications
- Foot Type: Flex Foot System
- Material Composition: Carbon Fiber
- Amputation Level: Transtibial, Transfemoral
- Activity Level: K3, K4
- Foot Shell: Not Included
- Foot Shell Color: Beige, Tan, Brown, Black
- Sandal Toe: No
- Waterproof: Yes
- Split Keel: Yes
- Adjustable Heel: No
- Weight Rating: 330lbs (150kg)
- Stiffness Categories: 2A-F
- Sizes (cm): 22-31
- Product Weight (g): 675
- Build Height: 3 in (76mm)
- Heel Height: 3/8in (10mm)
- Connector: Posterior Mount
- Trial Period: N/A
- Warranty: 24 months from fit date
Note: Pylon sold separately. Please see related items below for more information on pylon ordering.
For those who do not want to build a custom foot shell, order the AllPro PM.
Note: Foot shell and socket sold separately. Please see related items below for more information on foot shell ordering.
| User: | Adult |
|---|---|
| Amputation Level: | Transfemoral (TF/AK), Transtibial (TT/BK) |
| Activity Level: | K3 (High), K4 (Very High) |
| Foot Type: | Flex-Foot |
| Build Height: | 77-101 mm (3-3.9 in) |
| Foot Shell Included: | No |
| Key Features: | Exclusive Distributor, High Weight Limit |
| Weight Limit: | 100 kg (220 lbs), 125 kg (275 lbs), 136 kg (300 lbs), 150 kg (330 lbs) |
| Material: | Carbon Composite |
