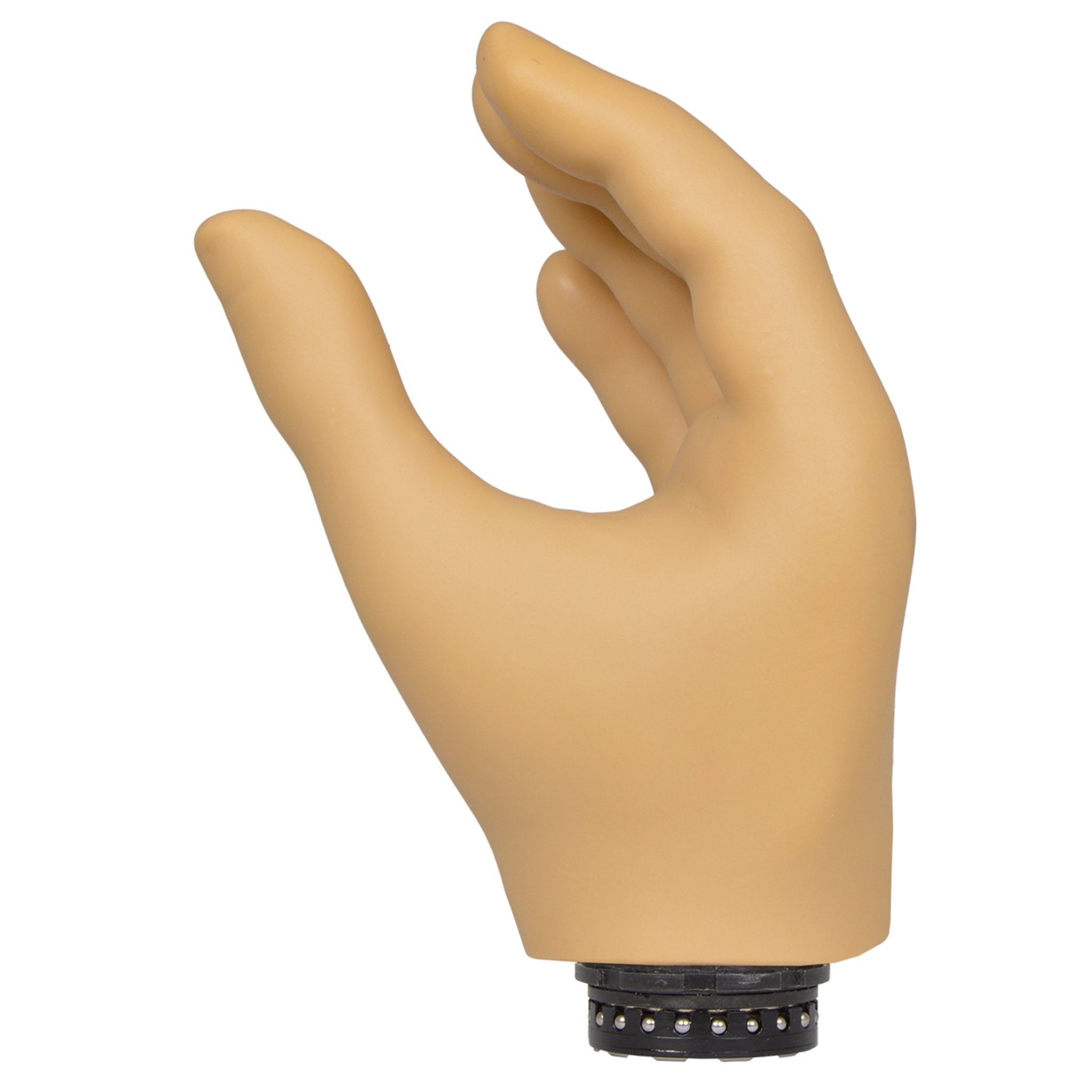

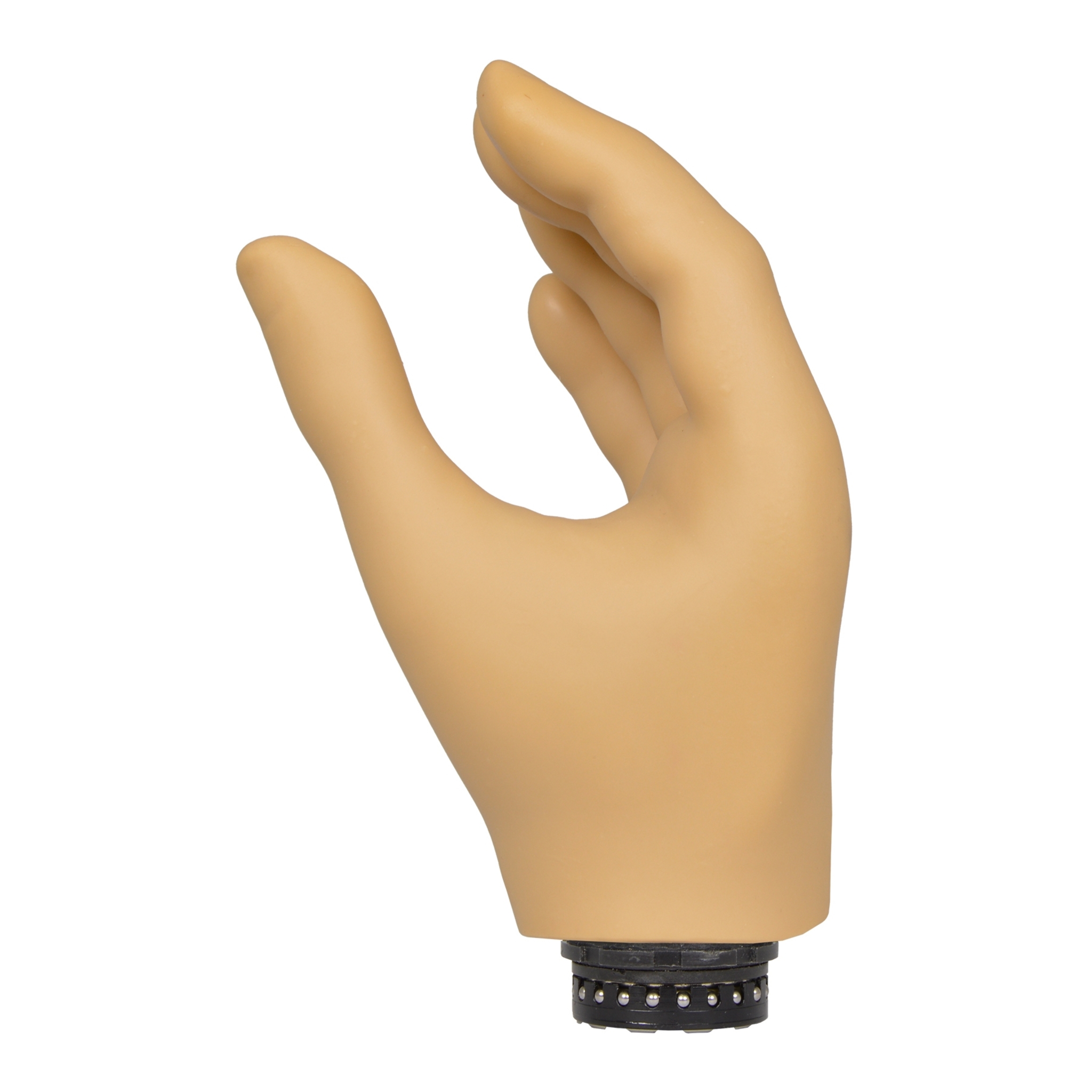

Motion Control Hand with Quick Disconnect Wrist
Quick Links
Product information
The Motion Control (MC) Hand is made with high-strength, CNC machined fingers. It is wide opening and has a built-in safety release. The MC Hand serves as a useful tool for many tasks and lifestyles. Flexion Wrist or Multi-flex Wrist options are available, as well as an optional MC Wrist Rotator. The Standard Hand can be used with all Motion Control Elbow systems and ProControl 2.
- Operating Temperature: -5° to 60° C (23° to 140° F)
- Transport & Storage Temperature: -18° to 71° C (0° to 160° F)
- Pinch Force: At 7.2 volts: 10 kg (22 lbs, or ~ 100N)
- Operating Voltage Range: 6 to 16 Vdc (MC Hand)
- Load Limit: 22 kg / 50 lbs in all directions (+/- 10%)
- Return: 30 days from ship date
- Warranty: 12 months
| User: | Adult |
|---|
Frequently Bought Together

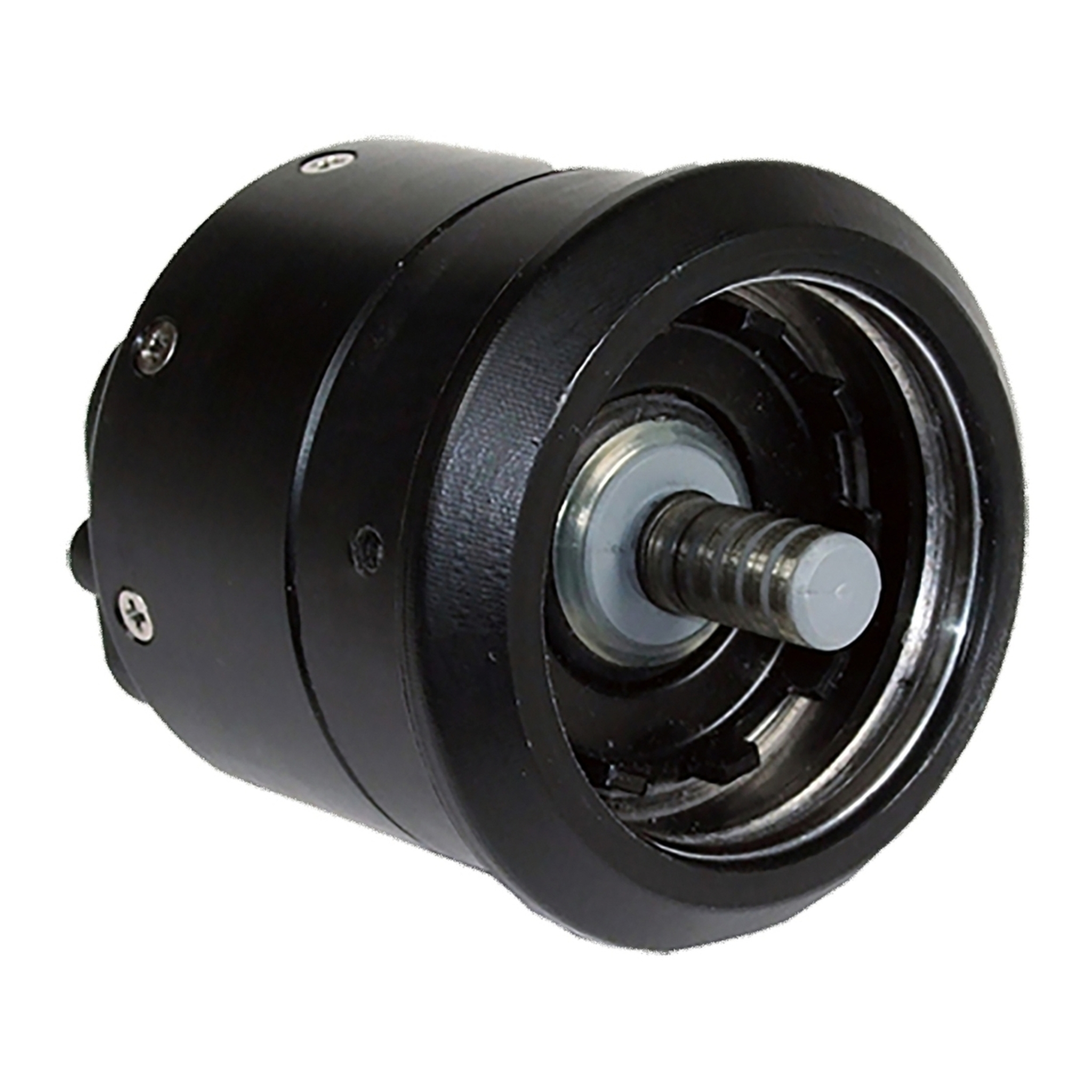

MC Standard Wrist Rotator
The Motion Control Wrist Rotator mounts in the forearm of a Utah Arm, Hybrid Arm, or ProControl 2. It has twice the speed and torque of other Wrist Rotators.Twice as fast as previous wrist rotators with 28 rpmHighest torque available (15 in-lb [1.7 N-m])Quietest wrist rotator (38.5 db @ 1 meter)Can be used for i-limb™ or bebionic™ handsVersatile, standard quick disconnect systemAvailable in Tan, Brown, or Jet Black
Flexion Wrist Option for Standard and ProPlus Hand
The Motion Control Flexion Wrist allows a hand to be moved and locked at 30 degrees flexion and extension for optimal positioning while eating, driving, etc. A manual lever locks the wrist in the neutral position or at 30 degrees of flexion or extension.
In-Hand Wrist Rotator for Hands
The In-Hand Wrist rotator for hands connects the electric wrist rotator distal to the quick disconnect. Options for Standard or ProPlus hands.

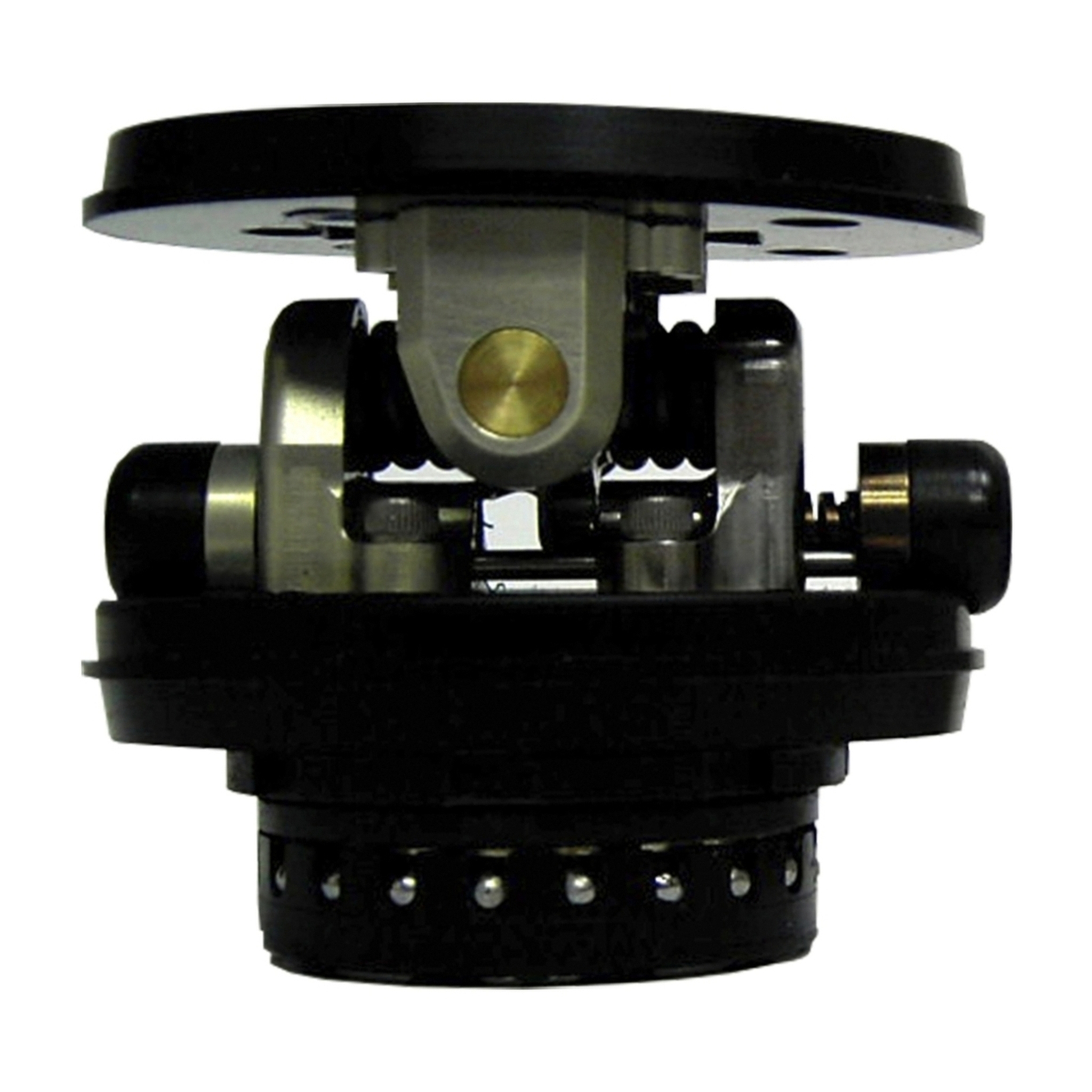

Multi-Flex Wrist Option
The Motion Control Multi-Flex Wrist allows movement in multiple directions and is spring loaded to the center of travel. The spring loaded centering provides a ”natural” feel. The wrist can flex in any direction as needed and adjust to the loads placed on it, which provides a more comfortable feel versus a rigid wrist. The manual latch mechanism enables or disables the latch. When the latch is enabled, the wrist is locked. When the latch is disabled, the wrist is unlocked.Standard, ProPlus, ETD, and ETD2 options are available.

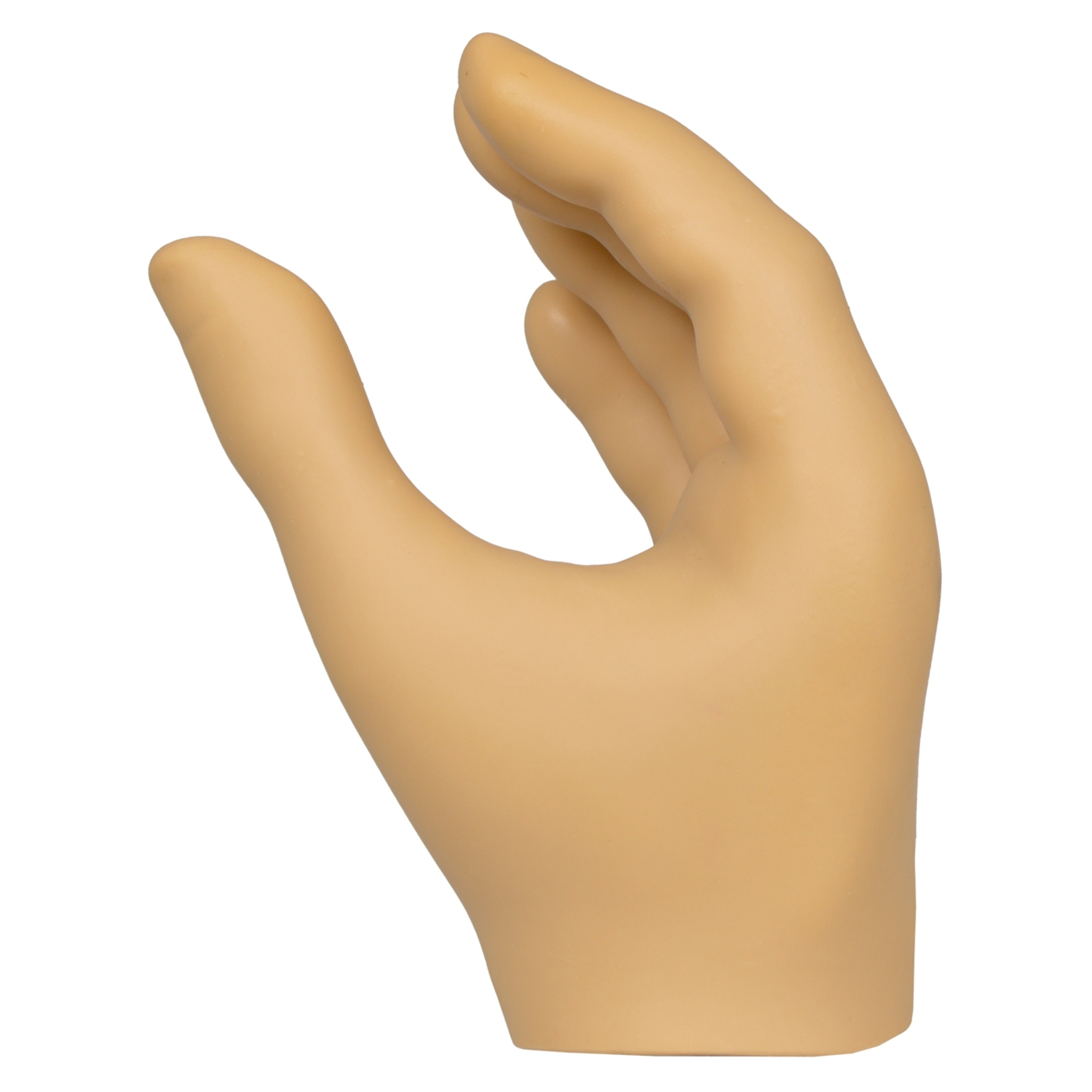

Wrist Disarticulation Option
For Direct Lamination of the Terminal Device to the Forearm. (No Quick disconnect)
