The Point Pivot+ is a dynamic mounting system that provides additional degrees of freedom to the Point Thumb. As a replacement to the standard mounting system for the Point Thumb, the Point Pivot+ provides many functional benefits to the patient. It allows the Point Thumb to be moved from an oppositional position to a lateral position. Additionally, it enables rotation of the flexion/extension plane of the Point Thumb, allowing for a greater number of achievable hand grasps.Used in place of the standard mounting system of the Point Thumb, the Point Pivot+is designed for integration into a hard shell with a soft inner liner (e.g. carbon fiber with silicone or similar). Sockets are not included with the Point Pivot+. Though it is intended for use with the Point Thumb, the Point Pivot+ is compatible with the Point Digit, Point Digit mini, and Point Partial.Titanium and stainless steel19 locking levels of adduction/abduction3 positions of rotation3 mounting positions for the Point ThumbHigh strength: 150 lb (68 kg) load capacityLow weight: 0.51 oz (14.5 g)Each Point Pivot+ fitting requires 2 mounting brackets24-month limited warranty

The Point Pivot+ mounting kit connects one Point Pivot+ system into a hard shell socket (e.g., carbon fiber). The mounting kit consists of two brackets, a two-piece lamination spacer, and mounting hardware. After proper positioning, the brackets are embedded into the shell material. A lamination spacer is provided to assist with the embedding process. Mounting hardware is used to attach the lamination spacer to the brackets during lamination, as well as for the final installation of the Point Pivot+.Steel construction for high strength - 300 lb (136 kg) tear out strength (using supplied mounting screws)Lamination spacers maintain mounting area during bracket embedding processTorx™ screws are used to minimize stripping and tampering

The Point Pivot is a rotatable mounting system that provides an additional degree of freedom to the Point Thumb. Though it is intended for use with the Point Thumb, the Point Pivot is compatible with the Point Digit, Point Digit mini, and Point Partial.Designed for people who have thumb amputations slightly proximal of the metacarpal phalangeal (MCP) joint, desire a more dynamic prosthetic thumb, and aren't candidates for the Point Pivot+.The Point Pivot is a heavy-duty, passive device with a robust construction. It empowers people with significant thumb loss by giving them more mobility, function, and independence. It is intended to be used with the Point Thumb and replaces the standard mounting kit. However, you do not need to use the Point Pivot in order to use the Point Thumb, it is simply an additional device that adds more function to the Point Thumb for patients with higher level thumb amputations.It is available in two configurations: Compact and Extended. By default the Point Pivot is provided in the Compact configuration, which is designed for integration with new sockets. The Extended configuration can be provided upon request. The Extended configuration is directly compatible with existing sockets where a Point Thumb was previously mounted. The Point Pivot and the Point Thumb (and their associated mounting kits) are sold separately.The Point Pivot is made of titanium and stainless steel, and comes with all necessary hardware for integration into a prosthetic socket. A semi-hollow titanium construction ensures a high strength-to-weight ratio.Can be mounted in the neutral, pre-flexed, or pre-extended positions150 lb (68 kg) load capacity0.43 oz - 0.51 oz (12.2 g - 14.5g) in weightRobust rotation mechanism with 18 locking positions

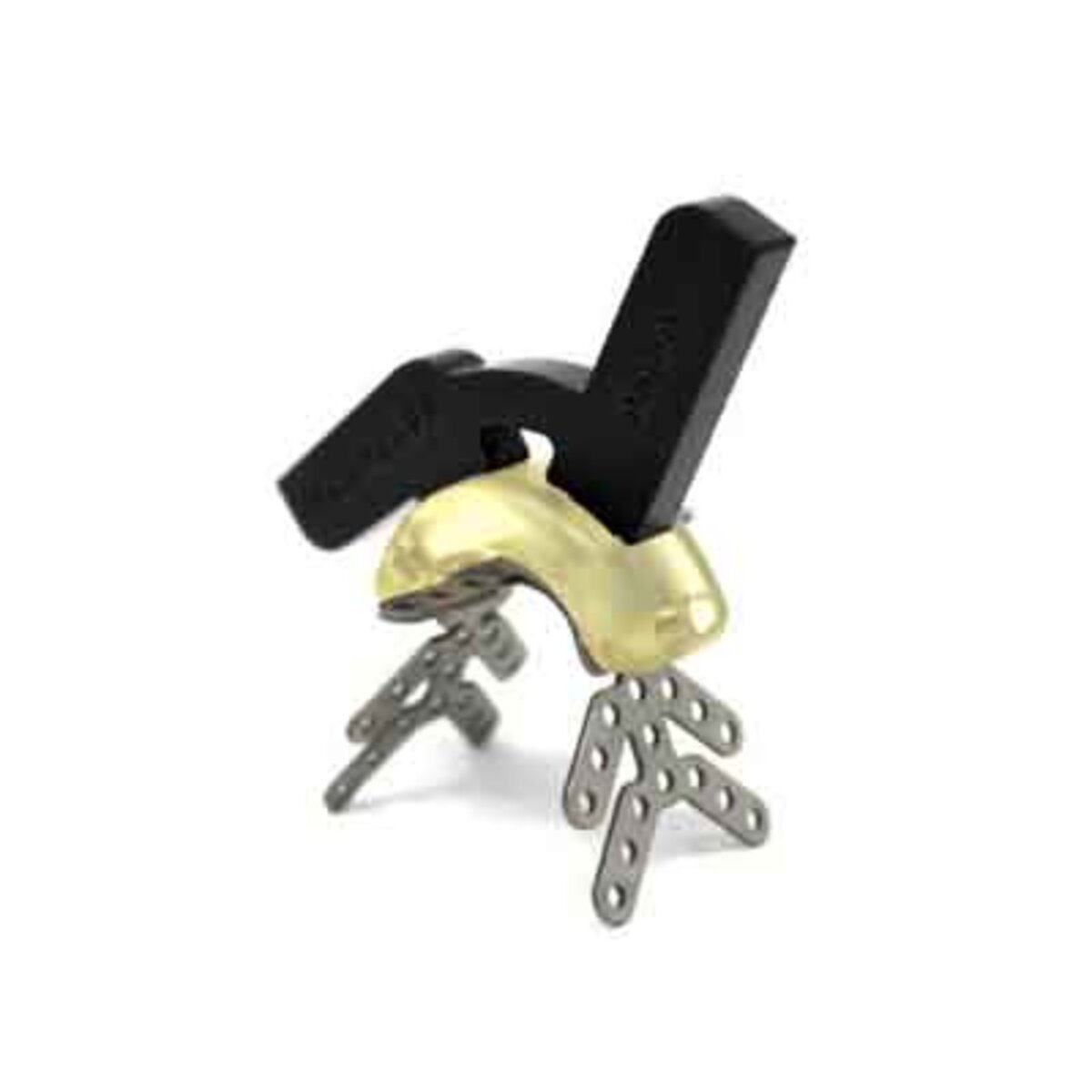

The Point Partial mounting kit enables securement of one Point Partial into a hard shell socket (e.g., carbon fiber). The mounting kit consists of a mounting bracket, lamination spacer, alignment tool, alignment transfer post, and mounting hardware. After proper positioning using the alignment tool, the bracket is embedded into the shell material. An alignment transfer post is provided to assist with transferring digit alignment from a diagnostic socket to a definitive socket, if needed. A lamination spacer is provided to assist with the embedding process. Mounting hardware is used to attach the lamination spacers to the bracket during lamination, as well as for the final installation of the Point PartialBendable tabs for easy tacking during alignment and strength after laminationAlignment tool demonstrating full flexion/extension enables alignment without using prosthetic digitAlignment transfer post provides secure attachment during transfer of alignment from diagnostic socket to definitive socketStainless steel construction for high strength - 300 lb (136 kg) tear out strength (using supplied mounting screws)Lamination spacers maintain mounting area during bracket embedding processTorx™ screws are used to minimize stripping and tampering

The Point Pivot mounting kit connects one Point Pivot system into a hard shell socket (e.g., carbon ?ber). The mounting kit consists of a bracket, a lamination spacer, and mounting hardware. After proper positioning, the bracket is embedded into the shell material. A lamination spacer is provided to assist with the embedding process.Mounting hardware is used to attach the lamination spacer to the brackets during lamination, as well as for the ?nal installation of the Point Pivot.Steel construction for high strength - 300 lb (136 kg) tear out strength (using supplied mounting screws)Lamination spacers maintain mounting area during bracket embedding processTorx™ screws are used to minimize stripping and tampering
