WillowWood One® TF System
Quick Links

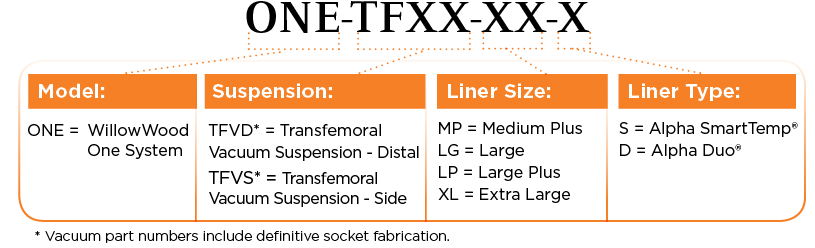

| Part # | Description |
|---|
Product Information
The WillowWood One® System provides transfemoral amputees with advanced socket technology that controls pistoning, reduces sweating, and allows for a broad range of motion while maintaining an airtight seal. Elements of the system work together as one to deliver reliable and secure elevated vacuum suspension without the need for hoses or bulky sleeves.
- Developed and designed for patients who comment about lack of suspension or insecurity with their current prostheses or experience excessive sweating
- Ideal candidates for this system have a residual limb that is 7 inches (178 mm) or longer or a femoral length of 6 inches (155 mm) or longer
- WillowWood One® system may also be used for suction suspension
- LimbLogic® is available as distal mount or side mount
- Control the LimbLogic® from a mobile device with the LimbLogic® app
Vacuum Kit Includes:
Warranty Information:
Trial Period/Return Policy:
- Fabricated Socket: If a definitive socket for the system HAS BEEN fabricated, the trial period is 30 days from the socket ship date from WillowWood®. A credit will be issued for the WillowWood One® System components, less a non-refundable fabrication service fee.
- Non-Fabricated: If a definitive socket has NOT been fabricated, the trial period is 30 days from invoice date and you are eligible for a full credit.
- Definitive Socket: 2 months from date of invoice
- Liner, Gel Sock, & Seal: 12 months from date of invoice
- LimbLogic® Pump: 24 months from date of invoice
- (1) Definitive Socket Fabrication
- (1) LimbLogic® (Distal or Side Mount) with Charger and Fob
- (1) One Seal
- (1) One Gel Sock
- (1) Alpha SmartTemp® Liner or (1) Alpha Duo™ Liner
Specifications
