RevoSurface® Tool Kit with Click® Reel
Quick Links
Product information

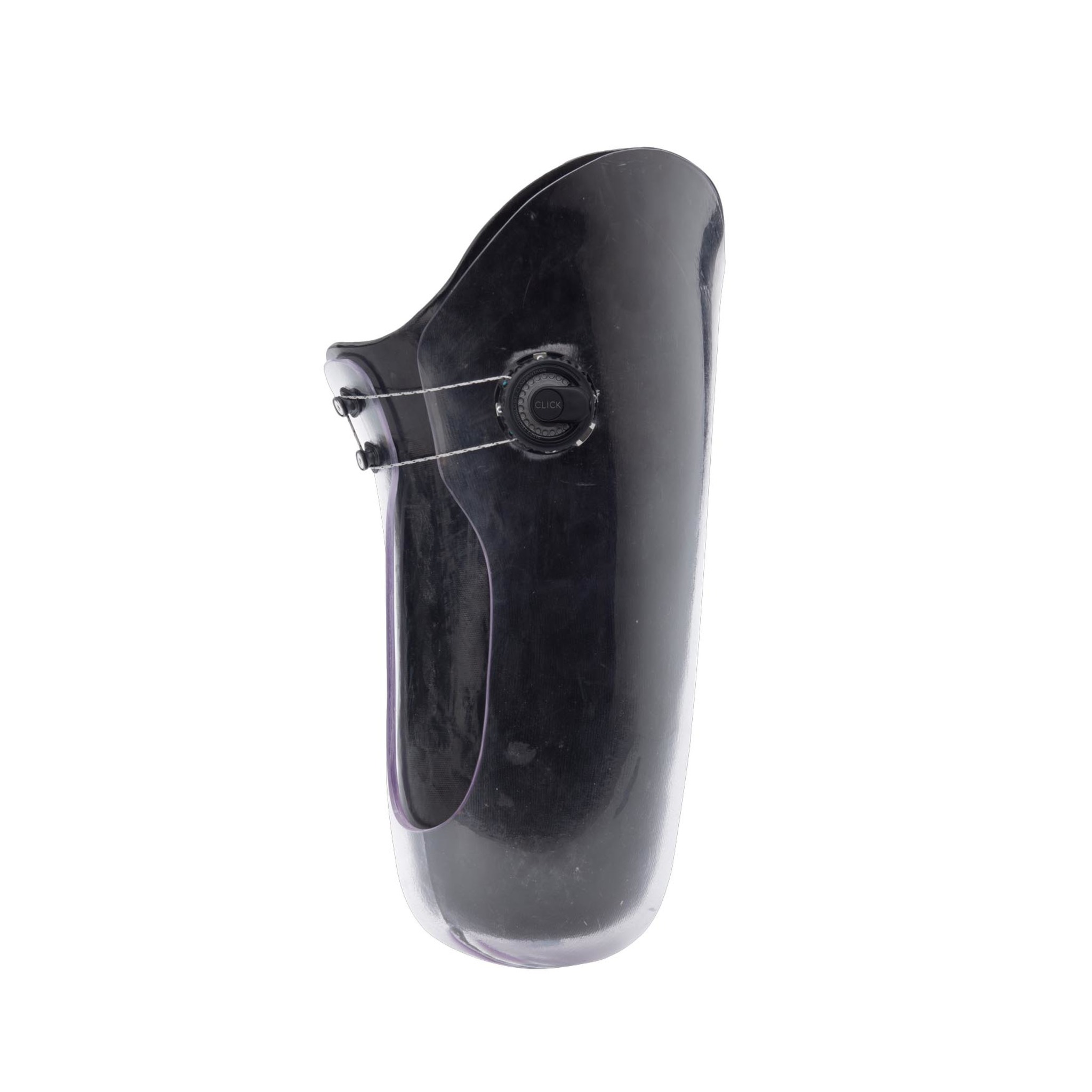

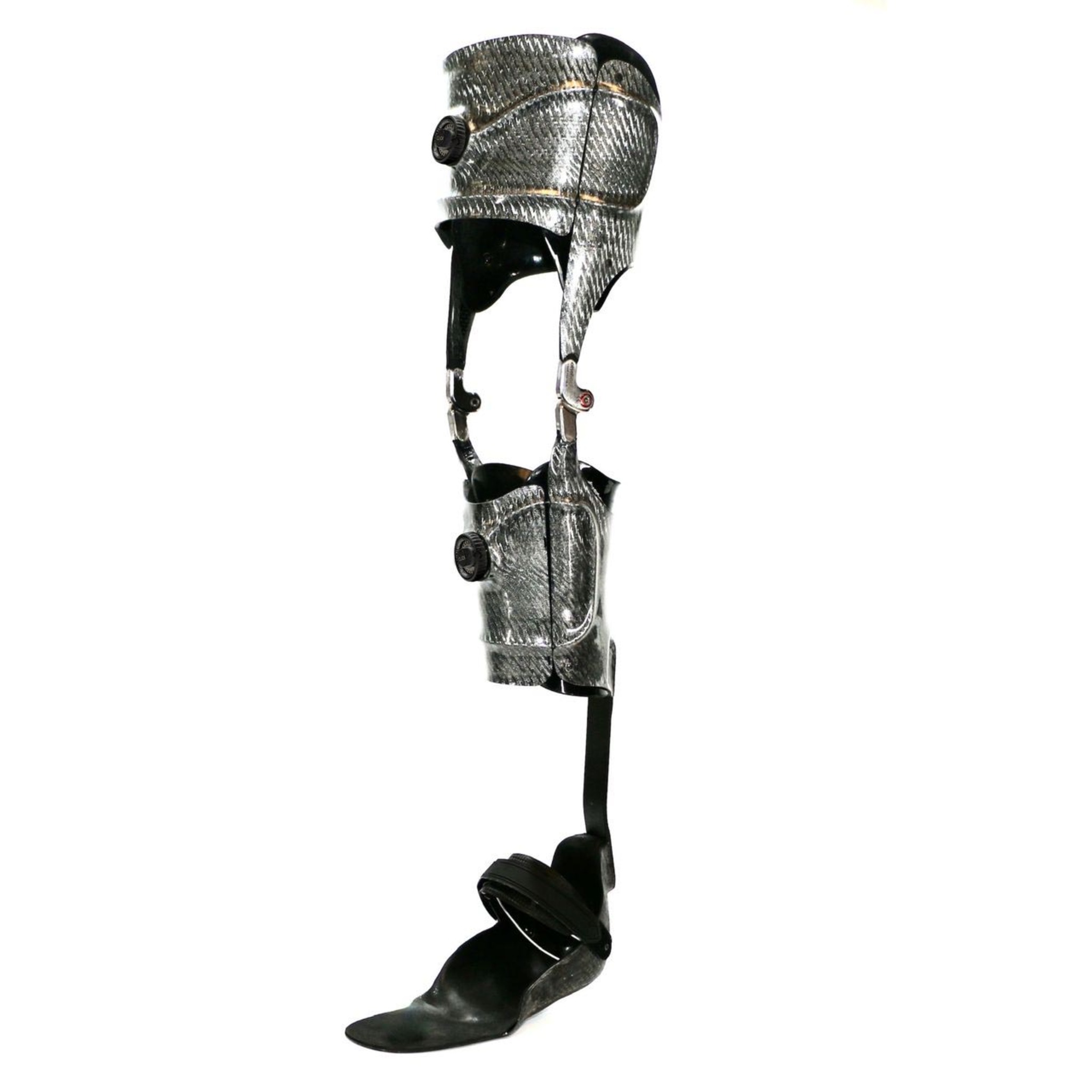

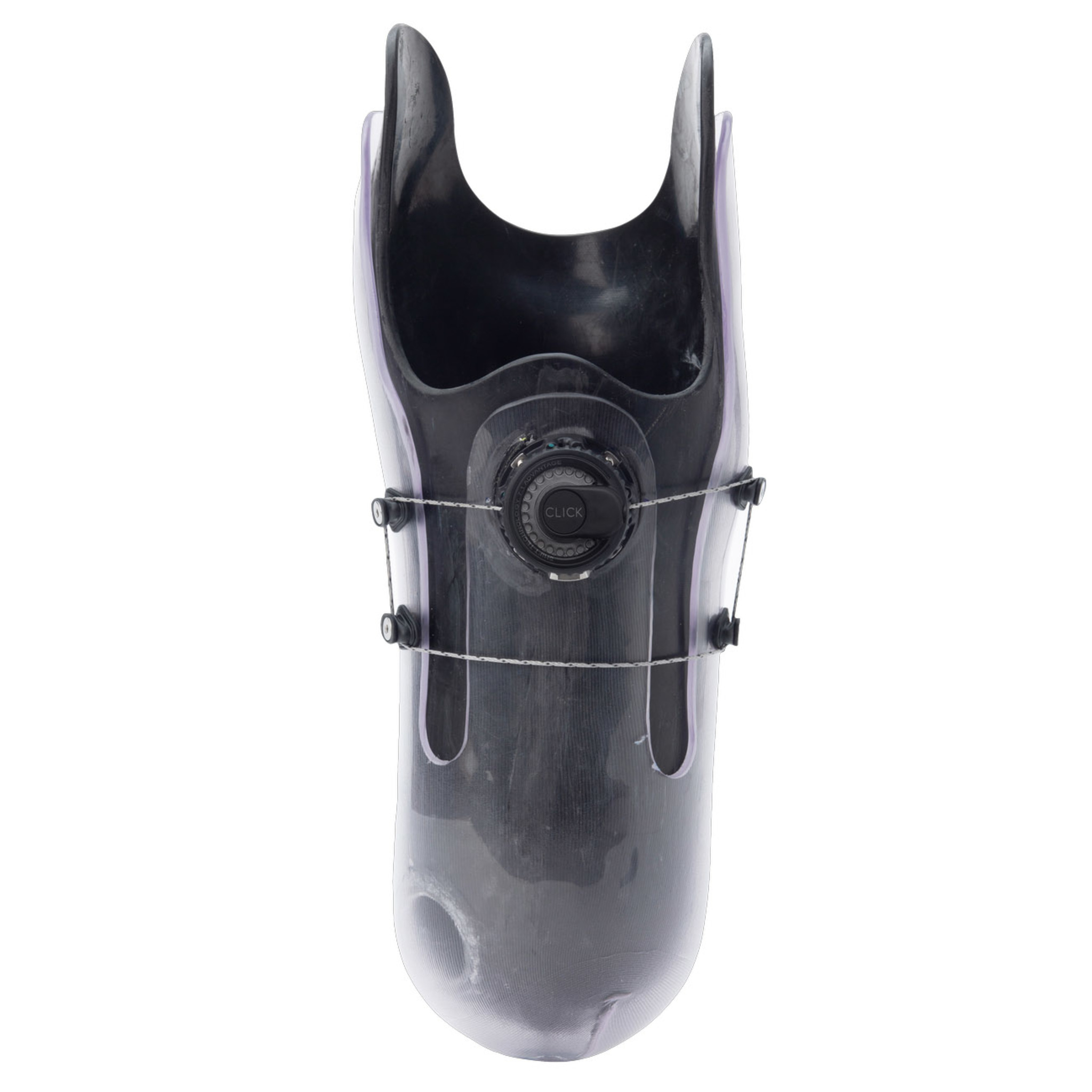

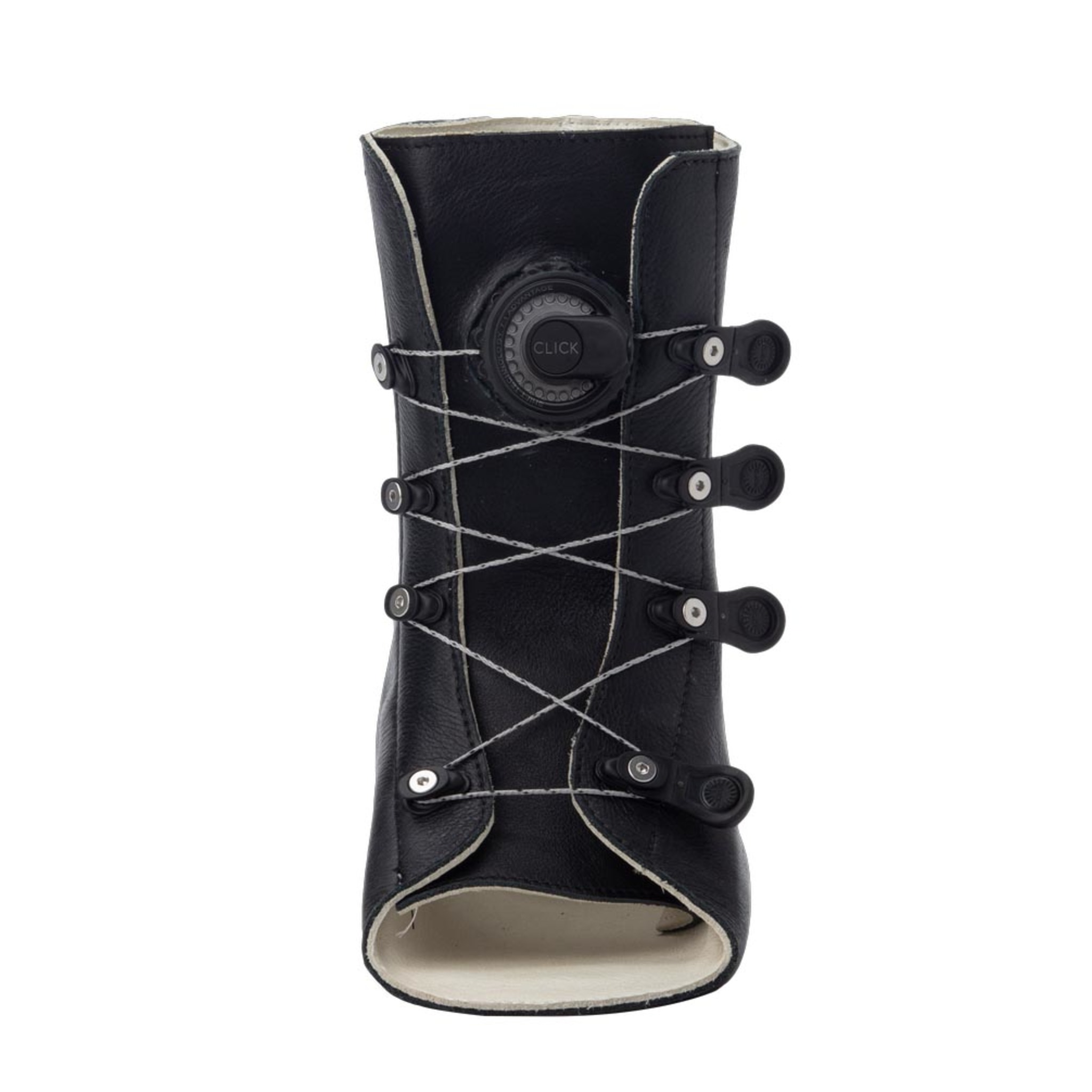

This single RevoSurface Tool Kit with the Click Reel allows you to test adjustable designs and fit of check sockets, 3D printed devices, and on orthoses. It can also be used to solve fit issues on existing rigid devices.
The Click Reel innovation creates adjustable devices with a lower streamlined profile, micro/macro adjustment that incrementally tightens and loosens with increased durability.
Kit Includes:
- 1x Click Reel
- 2x Surface Collar
- 2m HC Lace
- 1.8m Lamination Tubing
- 1x Metal Lace Feeder
- 3x Plastic Lace Feeders
- 1x Reel Tool
- 6x Surface Guides
- 3x Releasing Guides
- 4x Chicago Screw Assemblies
Specifications
- Build Height of Click® Reel: 14mm visible profile, 24mm total
- Reel Diameter: 42mm
- Reel Weight: 71g
- Collar Diameter: 42mm
- Attachment Arms OD: 89mm
- Surface Guide Height: 5.5 - 6.5mm
- Surface Guide Weight: 1g
- Release Handle Weight: 1g
- Tube/Sheath Length: 1.8m
- Tube Outer Diameter: 3.2mm
- Lace: 2m HC (High Capacity) Lace
- User Weight Limit: 300 lb/135kg
Please note: Instructions for system are available by using the QR Code on the system’s packaging.
| User: | Adult |
|---|---|
| Suspension Type: | Lock Accessories |
| Key Features: | Exclusive Distributor |
